1. Specification:
| Basic Parameter | |
| Product Type: | 3*LED Tube, Adapter, Car Lighter, Dimmer, Remoter, Handbag |
| Net Weight: | 660g |
| Electrical Data: | 12VDC/2A |
| CRI: | 80 |
| Lumen(Flux): | 1500lm |
| Beam Angle: | 180° |
| Working Temperature: | -20℃~40℃ |
| Packaging: | 60*25*15cm/1set/2.5kgs |
-

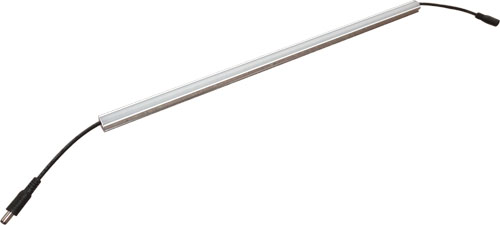

| LED Tube Parameter | |
| Size: | 500*17*13mm |
| Weight: | 90g |
| Input: | 5521 Female, 12VDC, 7W |
| Output: | 5521 Male, 12VDC |
| Quantity: | 3 pcs |
-
-

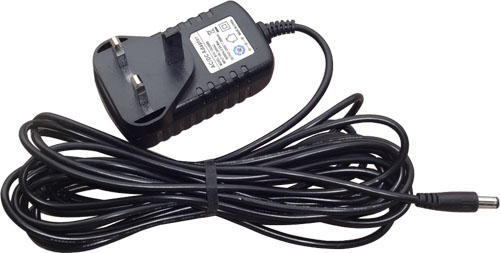

| Adapter Parameter | |
| Adapter Type: | Voltage Constant, UK Socket |
| Weight: | 225g |
| Input: | 100-240VAC, 50Hz/60Hz |
| Output: | 12VDC/2A, 5521 Male |
| Cable Length: | 5 meter |
| Cable#: | 18#(UL) |
| Certification: | TUV |
-
-

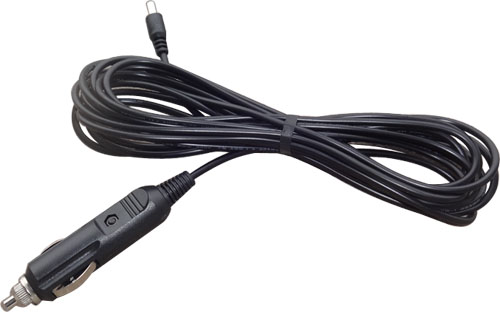

| Car Lighter Parameter | |
| Weight: | 125g |
| Input: | Car Lighter Plug |
| Output: | 5521 Male |
| Cable Length: | 5 meter |
| Cable#: | 22#(UL) |
-

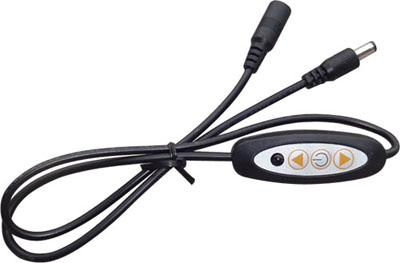

| Dimmer Parameter | |
| Weight: | 25g |
| Input: | 5521 Female, 12V/2A |
| Output: | 5521 Male |
| Function: | Remote Receipt |
-
-

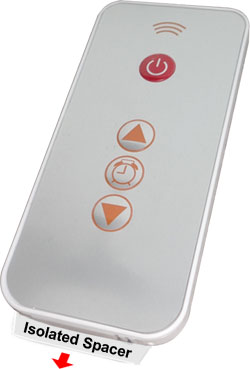

| DIM Remoter Parameter | |
| Size: | 90*40*6mm |
| Weight: | 15g |
| Remote Distance: | 3 meter |
-
2. Installation:
2. Installation:
Note: All inputs are 5521 Female Terminals, and all output are 5521 Male Terminals!
The Dimmer is between the Adapter(the Car Lighter) and LED Lights.
-
3. Application:
-
3. Application:
Caravan, Tent, Truck
-
-
-
-
